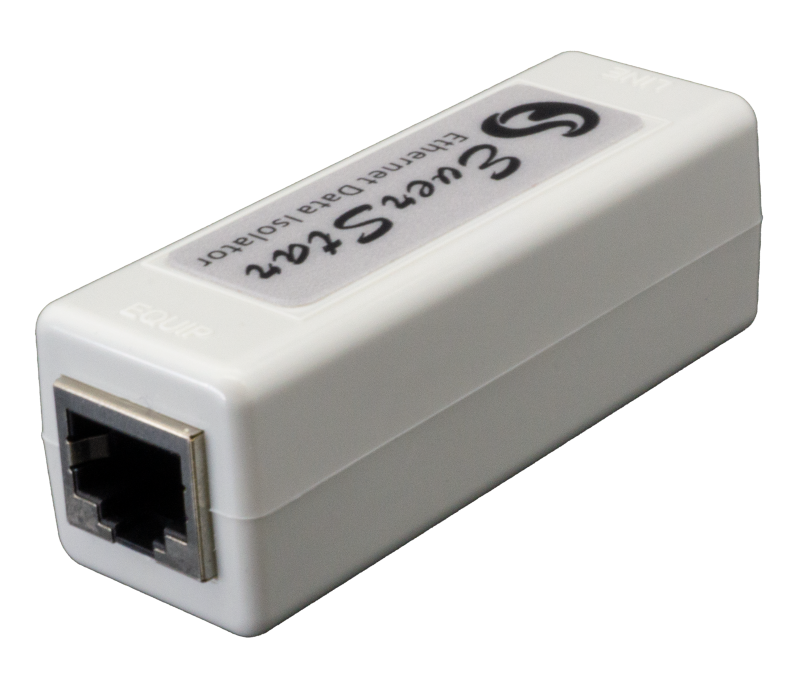

MI-300 Compact Gigabit Ethernet Data Isolator (EN60601-1 Compliant) for Healthcare | LAN Galvanic Isolator for Video/Audio

Where to buy Click here

100/1000 MbPS

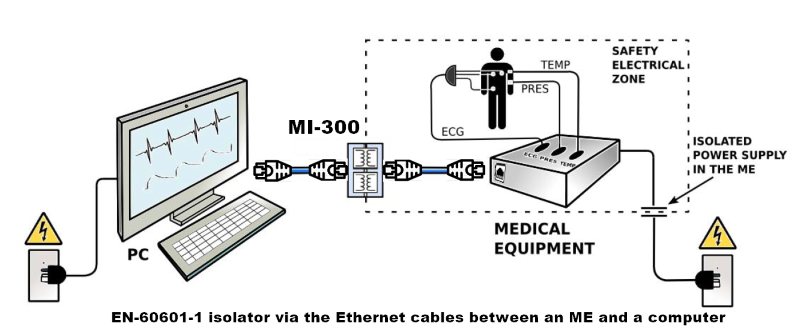

- Designed to comply with IEC/EN 60601-1 and IEC/EN 60601-2 medical applications, protect
  patients from electrical shock due to potential difference in network ports
- 4KV galvanic isolation and reinforced insulation
- Meets EN60601-1 European Medical Device Directive
- Cut noise transmission on network audio systems
- Isolate noise from the network and get better sound
- Breaks data lines & shield (protection against ground loops)

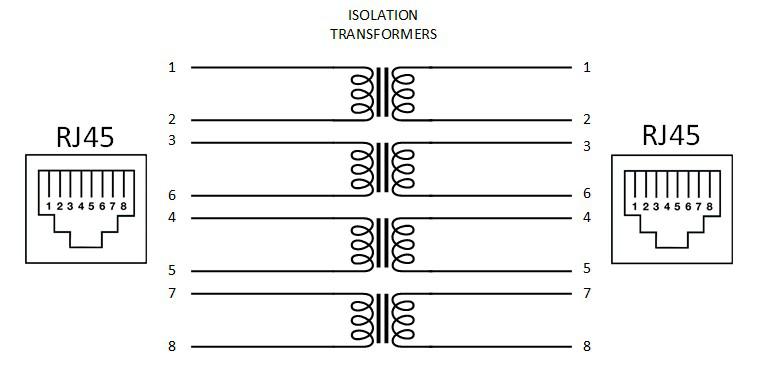

- Low loss isolation transformer
- Affordable replacement for JCAT or RLI-1 or Pink Faun or SOtM
- Non-Metallic UL94V0 flame rating enclosure
- RoHS/REACH compliance
